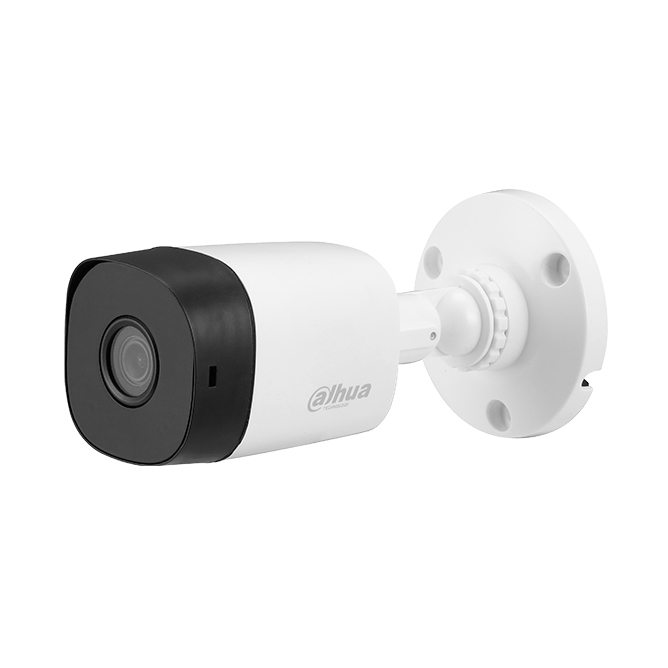

DAHUA HAC-B1A21-0360B 2MP 3.6MM CMOS 1080P TVI/AHD /CVI/CVBS IR BULLET KAMERA

Özellikler:
  • Çözünürlük: 2MP
  • Lens Türü: Sabit
  • Lens Ölçüsü: 3.6mm
  • KASA: Bullet

DAHUA HAC-B1A21-0360B 2MP 3.6MM CMOS 1080P TVI/AHD /CVI/CVBS IR BULLET KAMERA

Camera

Image Sensor 1/2.7" CMOS
Effective Pixels 1920(H)×1080(V), 2MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25~1/100000s
NTSC: 1/30~1/100000s
Minimum Illumination 0.04Lux/F1.85, 30IRE, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 20m (66feet)
IR On/Off Control Auto / Manual
Lens
Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length 3.6mm (2.8mm, 6mm Optional)
Max Aperture F1.85
Angle of View H: 93° (103°, 54.7°)
Focus Control N/A
Close Focus Distance 800mm (2000mm)
31.50'' (78.74'')
DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
  DORI
Definition
Detect 25px/m
(8px/ft)
Observe 63px/m
(19px/ft)
Recognize 125px/m
(38px/ft)
Identify 250ppm
(76px/ft)
Pan / Tilt / Rotation
Pan/Tilt/Rotation Pan: 0° ~ 360°
Tilt: 0° ~ 90°
Rotation: 0° ~ 360°
Video
Resolution 1080P (1920×1080)
Frame Rate 25/30fps@1080P, 25/30/50/60fps@720P
Video Output 1-channel BNC high definition video output / CVBS video output (Can switch)
Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / DWDR
WDR DWDR
Gain Control AGC
Noise Reduction 2D
White Balance Auto / Manual
Smart IR Auto / Manual

Certifications

Certifications CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
Interface
Audio Interface N/A
Eelectrical
Power Supply 12V DC ±30%
Power Consumption Max. 2.7W (12V DC, IR on)
Environmental
Operating Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
* Start up should be done at above -40°C (-40°F)
Storage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
Ingress Protection & Vandal Resistance IP67
Construction
Casing Plastic
Dimensions 70mm×70mm×149mm (2.76"×2.76"×5.87")
Net Weight 0.14kg (0.31lb)
Gross Weight 0.17kg (0.37lb)

Ürün Özellikleri

Çözünürlük
2MP
Lens Türü
Sabit
Lens Ölçüsü
3.6mm
KASA
Bullet
