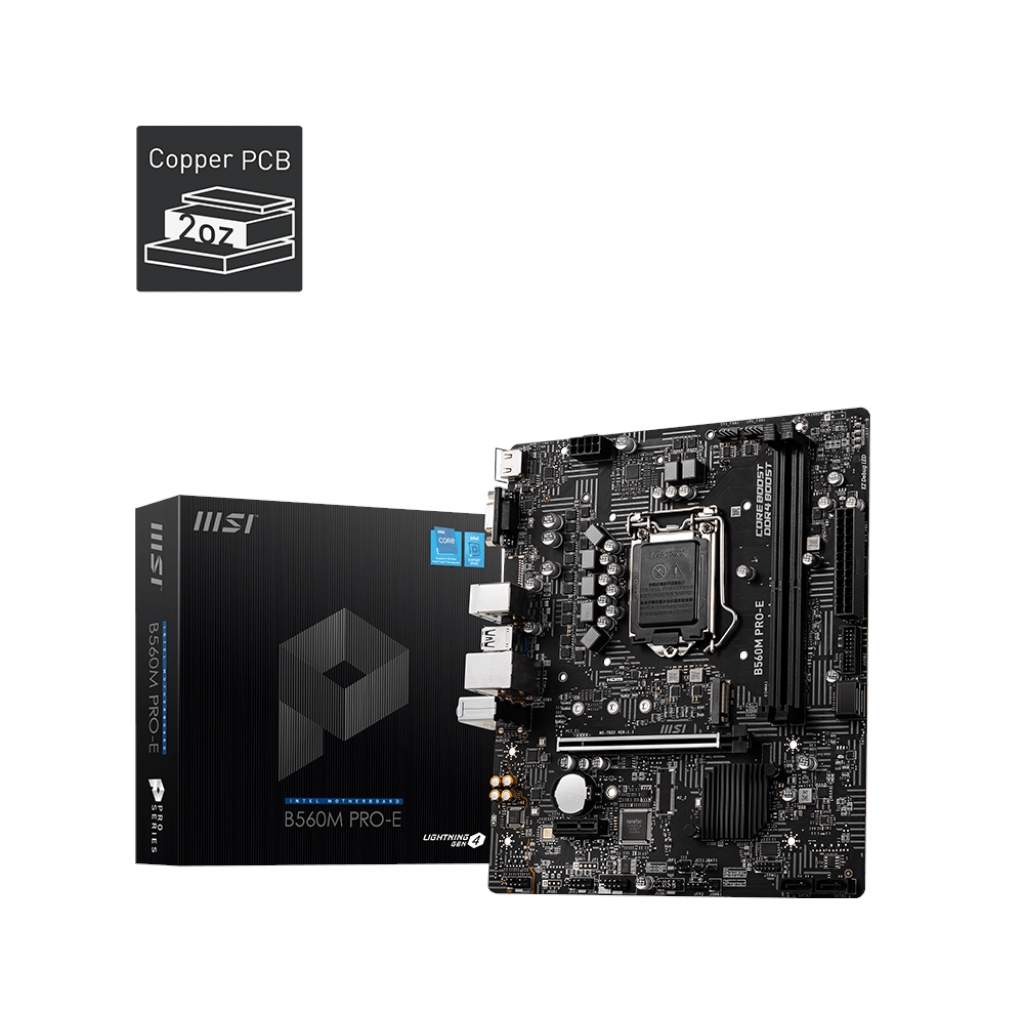

Msı B560m Pro-E 1200P Ddr4 Ses Glan Hdmı/Vga Sata3 Usb3.2 Matx
Özellikler:
- İşlemci Tipi: INTEL
- Soket Yapısı: 1200P
- Bellek Tipi: DDR4
- HDMI: Var
- DVI: Yok
- Display: Yok
- Bellek Yuvası: 2 Adet
- Bellek Desteği (Max): 64GB
- M.2 Desteği: 1xM.2
- O/B VGA: Var
| MARKA | MSI |
| GARANTİ SÜRESİ | 36 |
| EAN | 4719072807856 |
| İŞLEMCİ | Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core ™ Processors, Pentium® Gold and Celeron® Processors |
| YONGA SETİ | Intel® B560 chipse |
| BELLEK | 2x DDR4 memory slots, support up to 64GB Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4800 MHz 1DPC 2R Max speed up to 4600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| DAHİLİ GRAFİK | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz |
| GENİŞLEME YUVALARI | 1x PCIe x16 slot (From CPU) Support up to PCIe 4.0 for 11th Gen Intel® CPU Support up to PCIe 3.0 for 10th Gen Intel® CPU 1x PCIe 3.0 x1 slot (From PCH) |
| SES DESTEĞİ | 7.1-Channel High Definition Audio |
| LAN | 1x Intel® I219V 1Gbps LAN controller |
| USB PORTLARI | 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (4 Type-A ports on the back panel,2 ports available through the internal USB 2.0 connectors) |
| DEPOLAMA ARAYÜZÜ | 4x SATA 6Gb/s ports (From B560 Chipset) 1x M.2 slot (Key M) M2_1 slot (From B560 Chipset) Supports up to PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices |
| ARKA GİRİŞ/ÇIKIŞ PORTLARI | HDMI VGA Mouse / Keyboard LAN port Audio connector USB 2.0 USB 3.2 Gen 1 5Gbps Type-A USB 2.0 |
| DAHİLİ GİRİŞ/ÇIKIŞ PORTLARI | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 1x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector |
| FORM FAKTÖRÜ | mATX Form Factor 9.29 in. x 7.95 in. (23.6 cm x 20.2 cm) |
Ürün Özellikleri
İşlemci Tipi
INTEL
Soket Yapısı
1200P
Bellek Tipi
DDR4
HDMI
Var
DVI
Yok
Display
Yok
Bellek Yuvası
2 Adet
Bellek Desteği (Max)
64GB
M.2 Desteği
1xM.2
O/B VGA
Var
