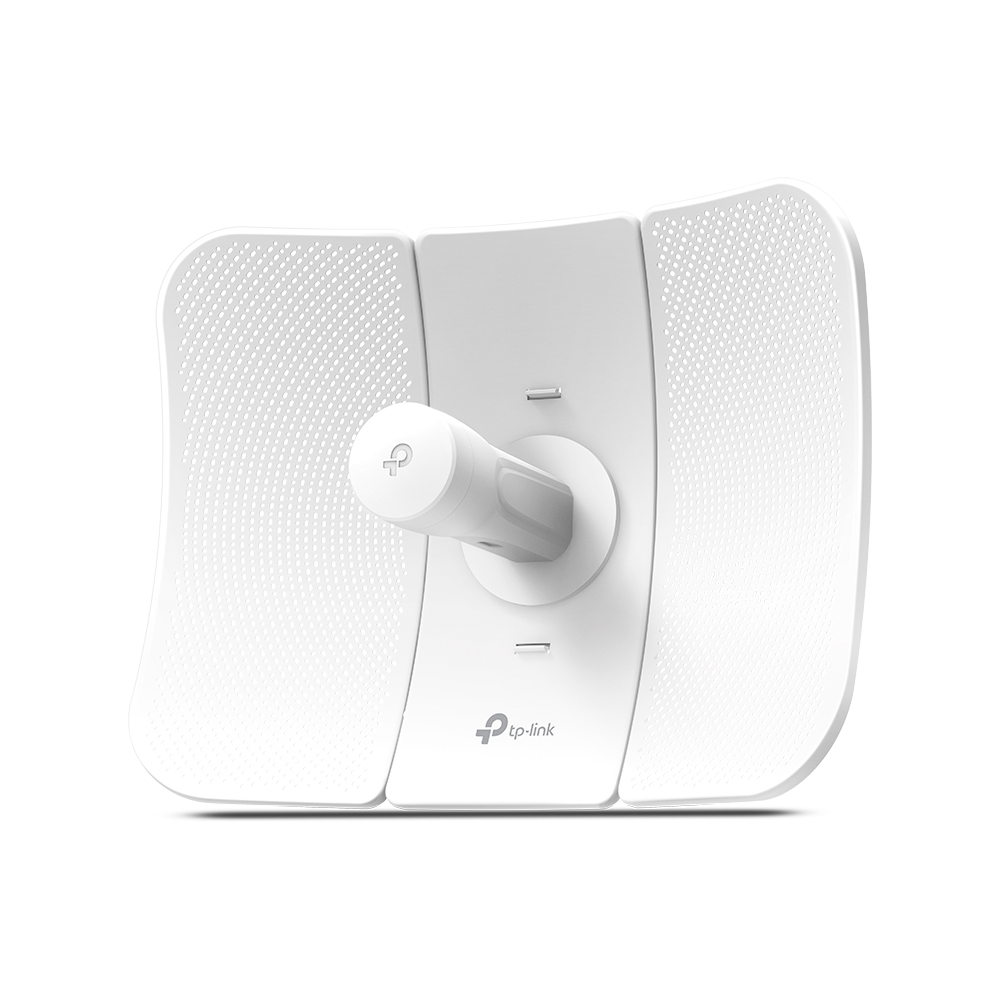

TP-LINK CPE710 867MBPS 1PORT 23DBI 5GHz OUTDOOR ACCESS POINT
Özellikler:
- 3G/4G Desteği: Yok
- Frekans: 5 GHz
- Ortam: Dış Ortam
- POE Desteği: Yok
- Port Sayısı: 1 Port
- SFP Desteği: Yok
- USB Desteği: Yok
TP-LINK CPE710 867MBPS 1PORT 23DBI 5GHz OUTDOOR ACCESS POINT
| DONANIM ÖZELLİKLERİ | |
| İşlemci | Qualcomm 750MHz CPU, MIPS 74Kc |
| Bellek | 128 MB DDR2 RAM, 16 MB Flash |
| Arabirim | 1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE) |
| 1 Reset Button | |
| Güç Kaynağı | Passive Power over Ethernet via LAN (+4,5pins; -7,8pins) |
| Voltage range: 16-27V DC | |
| Boyutlar ( W X D X H ) | 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.) |
| Anten Kazancı | 23 dBi |
| Anten Beamwidth | 9° (Azimuth)/7° (Elevation) |
| Koruma | 15 KV ESD Protection |
| 6 KV Lightning Protection | |
| Muhafaza | Material: Outdoor PC stabilized plastic |
| Weatherproof: IP65 water and dust proof design | |
| KABLOSUZ ÖZELLİKLERİ | |
| Kablosuz Standartlar | IEEE 802.11a/n/ac |
| Kablosuz Hızı | Up to 867 Mbps (80 MHz, Dynamic) |
| Up to 400 Mbps (40 MHz, Dynamic) | |
| Up to 173.4 Mbps (20 MHz, Dynamic) | |
| Frekans | 5.15~5.85 GHz |
| İletim Gücü | Max. 27 dBm (Adjustable power by 1dBm) |
| YAZILIM ÖZELLİKLERİ | |
| Ağ Yapılandırma | WAN: Static/ Dynamic/ PPPoE |
| LAN: Static/ Dynamic/ DHCP | |
| Forwarding: ALG/ UPnP/ Virtual Server/ Port Trigger | |
| Security: SPI Firewall/ Ping Forbidden/ DoS Protection | |
| Access Control | |
| Static Routing | |
| Bandwidth Control | |
| IP & MAC Binding | |
| Kablosuz Konfigürasyonlar | Selectable Channel Width: 20/40/80MHz |
| Auto Channel Selection | |
| Transmit Power Control | |
| Dynamic Frequency Selection(DFS) | |
| WDS Enable/ Disable | |
| Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, | |
| SSID Broadcast Enable/ Disable | |
| Multi-SSID with VLAN Tagging(AP Mode only) | |
| Distance/ ACK Timeout Setting | |
| Wireless MAC Address Filter | |
| Wireless Advanced: | |
| Beacon Interval/ RTS Threshold/ Fragmentation Threshold/ DTIM Interval/ AP Isolation/ Short GI/ Wi-Fi Multimedia | |
| Long Range PtP | |
| Yönetim | Discovery and Remote Management via Pharos Control application |
| HTTP/ HTTPS Web-based management | |
| System log | |
| SNMP Agent(v2c) | |
| Ping Watch Dog | |
| Dynamic DDNS | |
| SSH Server | |
| Sistem Araçları | Indicators:Signal Strength/ Noise/ Transmit CCQ/ CPU/ Memory |
| Monitors: Throughput/ Stations/ Interfaces/ ARP/ Routes/ WAN/ DHCP | |
| Spectrum Analyzer | |
| Speed Test | |
| Ping | |
| Traceroute | |
| Antenna Alignment | |
| Sistem Düzeyindeki Optimizasyonlar | Optimized IGMP Snooping / Proxy for multicast applications |
| POE ADAPTÖR ÖZELLİKLERİ | |
| Boyutlar (H X W X D) | 85.8×43.9×29.7 mm |
| Arayüzler | 1 AC Jack with Earth Ground |
| 1× 10/100/1000 Mbps Shielded Ethernet Port (Power + Data) | |
| 1× 10/100/1000 Mbps Shielded Ethernet Port (Data) | |
| Buton | Remote Reset Button |
| Güç Durum LEDleri | Green |
| Giriş | 100-240VAC, 50/60Hz |
| Çıkış | 24VDC, 0.5A Max |
| +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) | |
| Verimlilik | >84.29% |
| Sertifikalar | CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark |
| DİĞERLERİ | |
| Sertifika | CE, FCC, RoHS, IP65, IC |
| Paket İçeriği | Outdoor Wireless CPE |
| 24V 0.5A Passive PoE Adapter | |

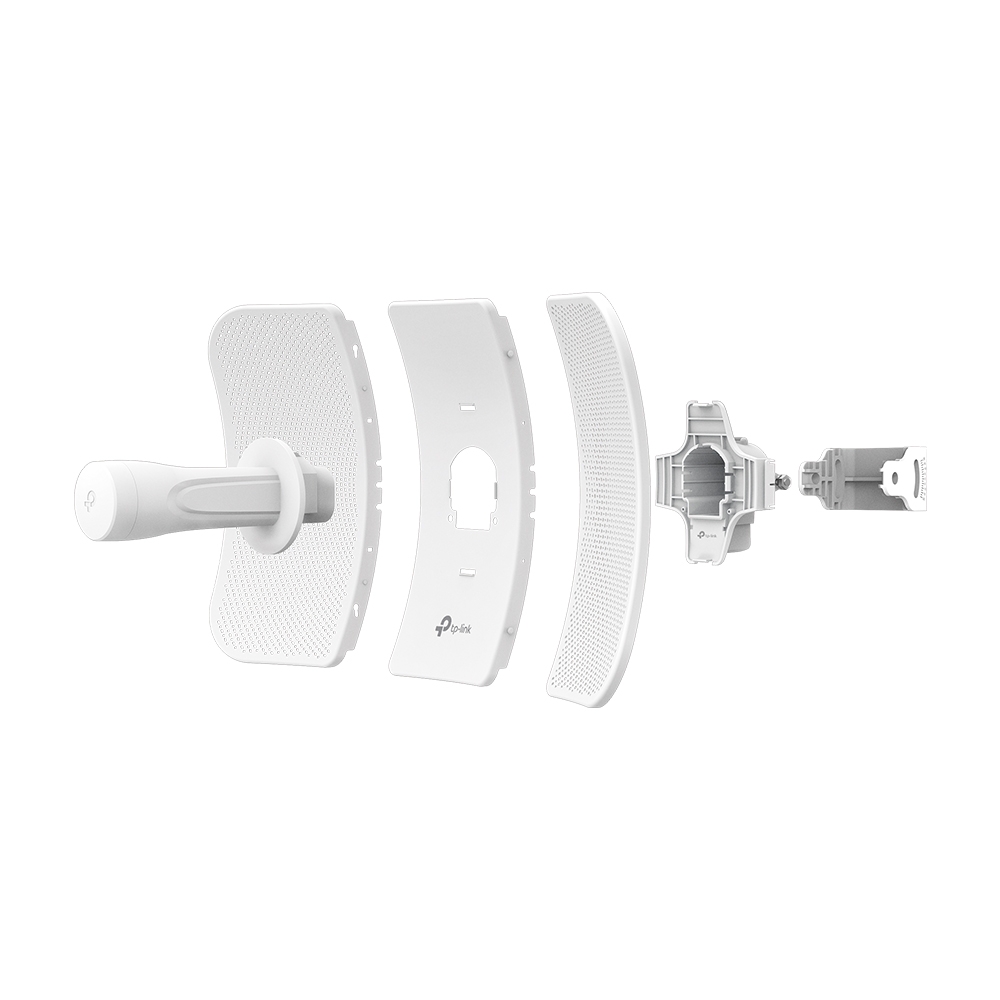

| Pole Mounting Kits | |
| AC Power Cord | |
| Installation Guide | |
| Sistem Gereksinimleri | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. |
| Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended. | |
| Ortam | Operating Temperature: -40℃~70℃ (-40℉~158℉) |
| Storage Temperature: -40℃~70℃ (-40℉~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~95% non-condensing | |
